Shemax

Soundproof design

Powerful motor up to 8 Bar

1-100 steps for pressure control

Products

Shemax

Features

TPI

Transcutaneous
Pneumatic Injetion

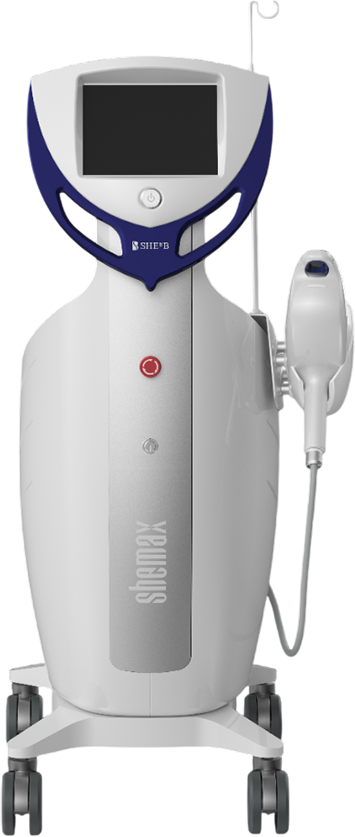

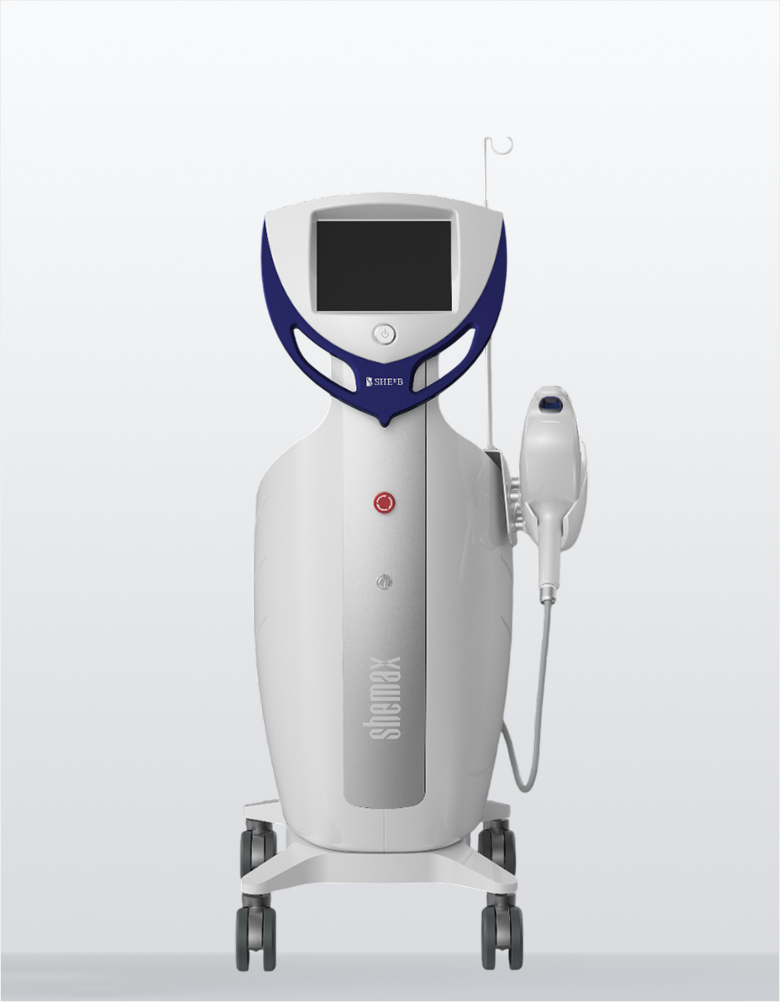

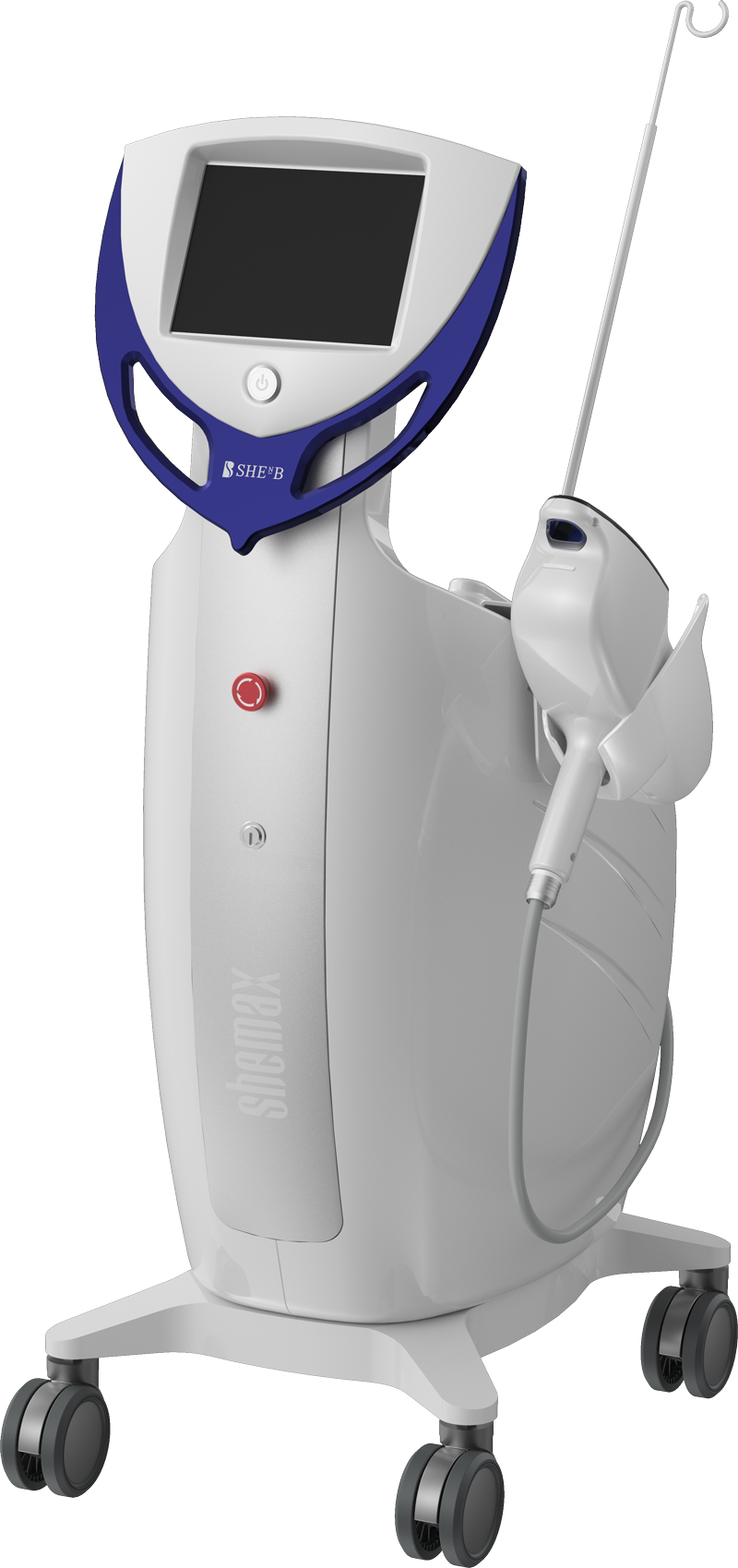

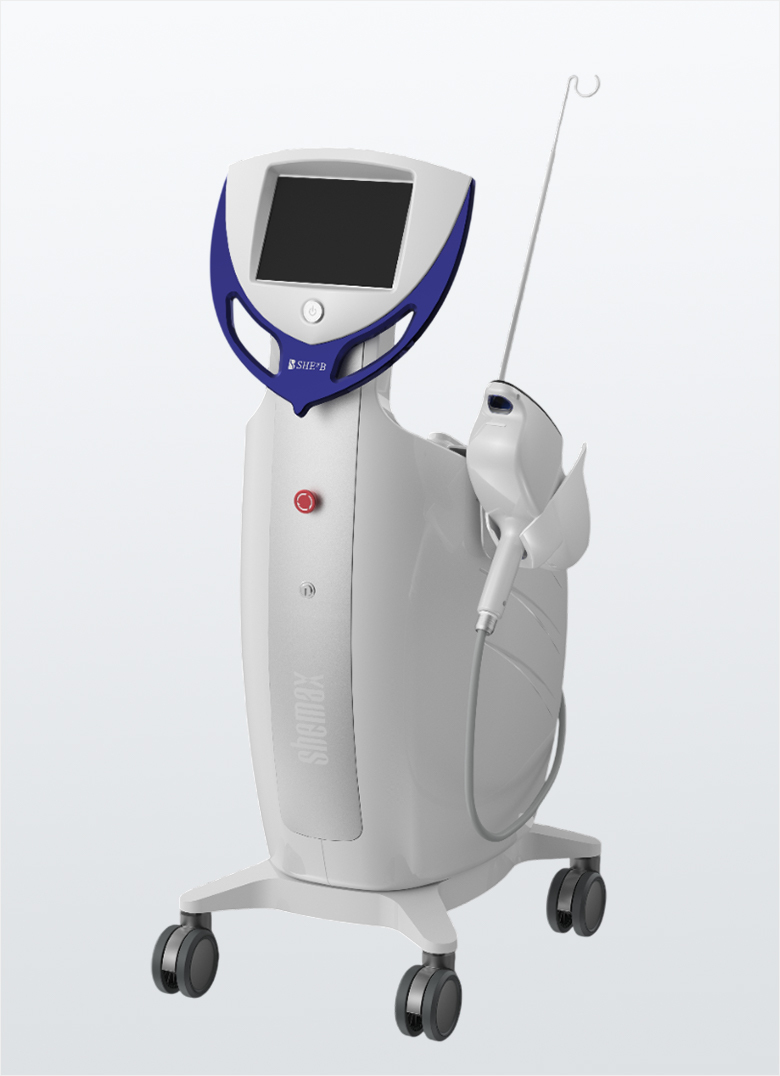

SHEMAX is a medical device
that injects a certain amount of
liquid medicine using an
electric medicine infusion pump.

Principle of Operation

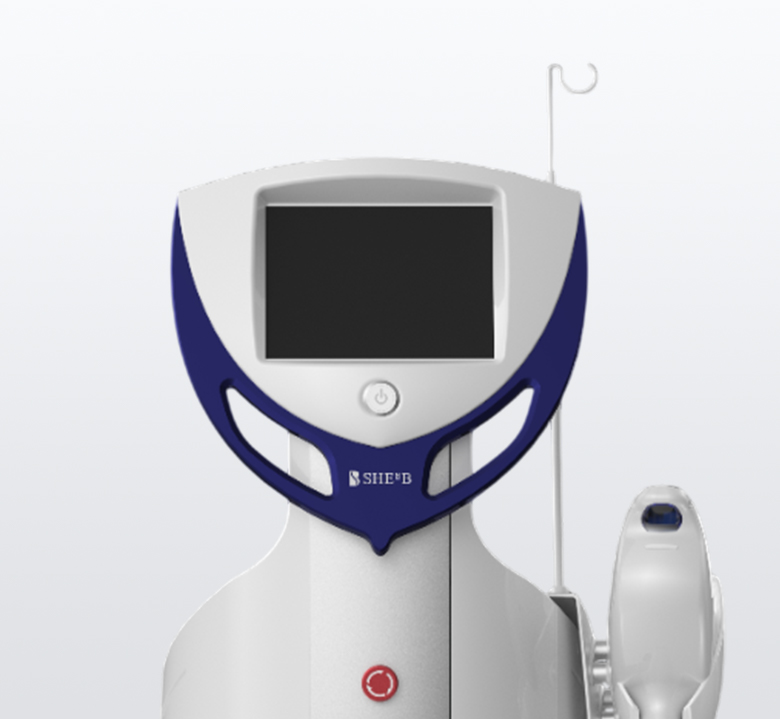

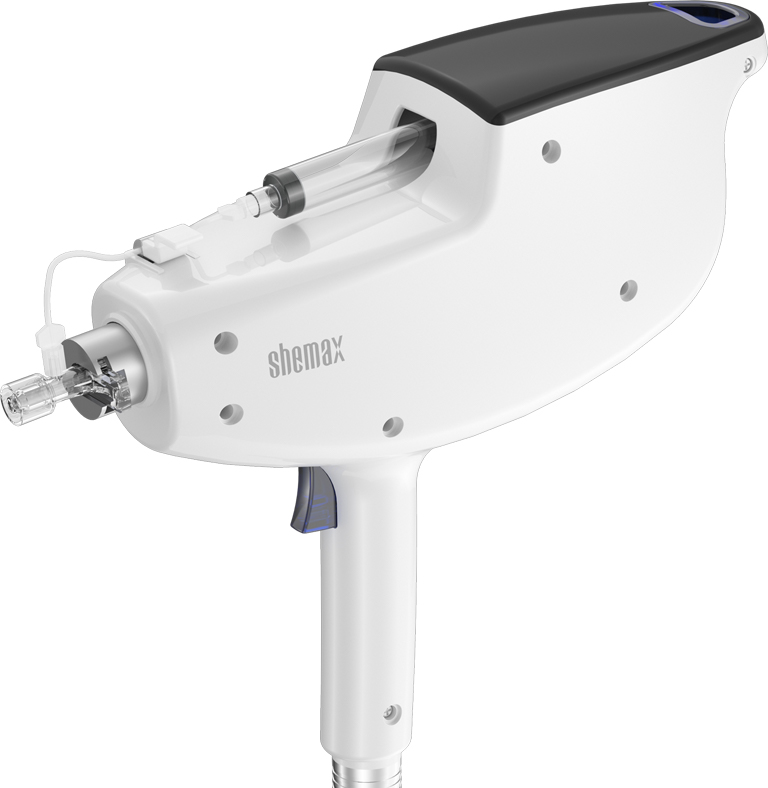

The system consists of a main body with a touch LCD and a handpiece When
powered on, the SMPS supplies DC 24V to the control unit, making the system
ready. After entering the filling level and pressure on the LCD, the output is set.
When the values match, the handpiece LED turns green, and pressing the
“Shots” switch starts operation.
The device connects to an injection system. When a syringe is installed in the
electric injection pump and air pressure is applied, the solution is pushed from
the syringe and discharged through the injection kit outlet.

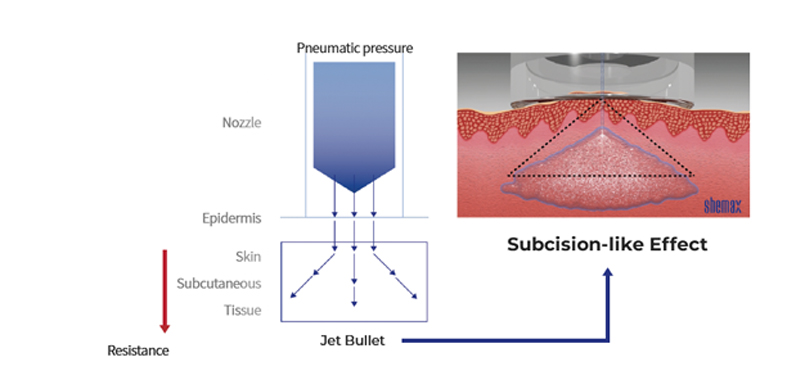

TIP

Transcutaneous Pneumatic Injection

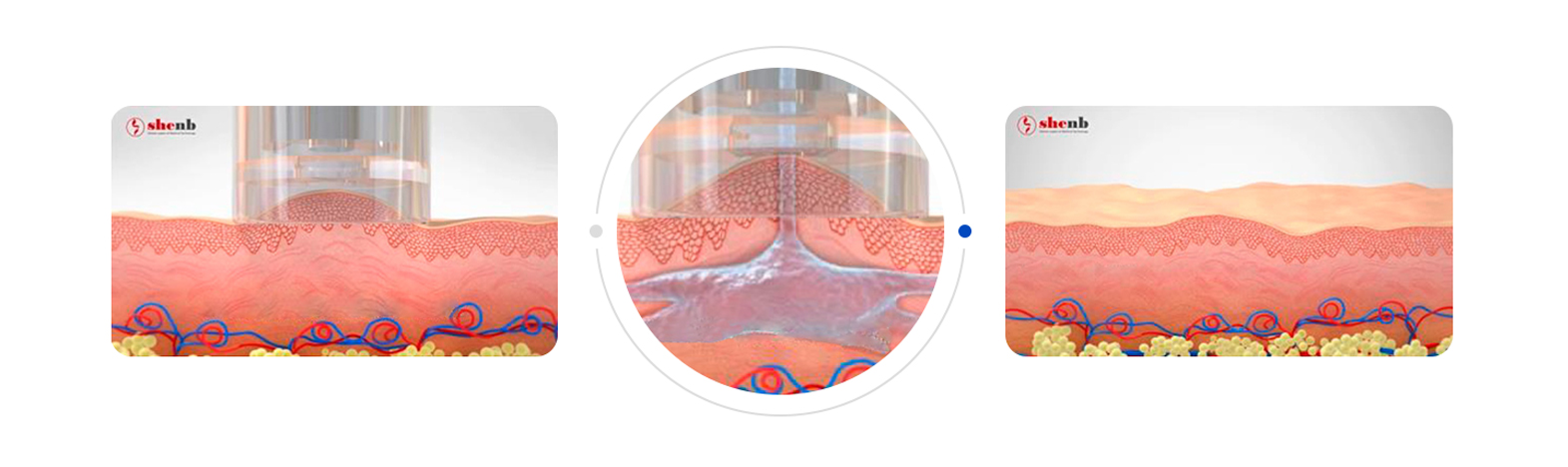

SHEMAX uses compressed air pressure to spray liquid medicine instantaneously.
At this time, liquid medicine is delivered to a certain depth through physical energy.
